Description

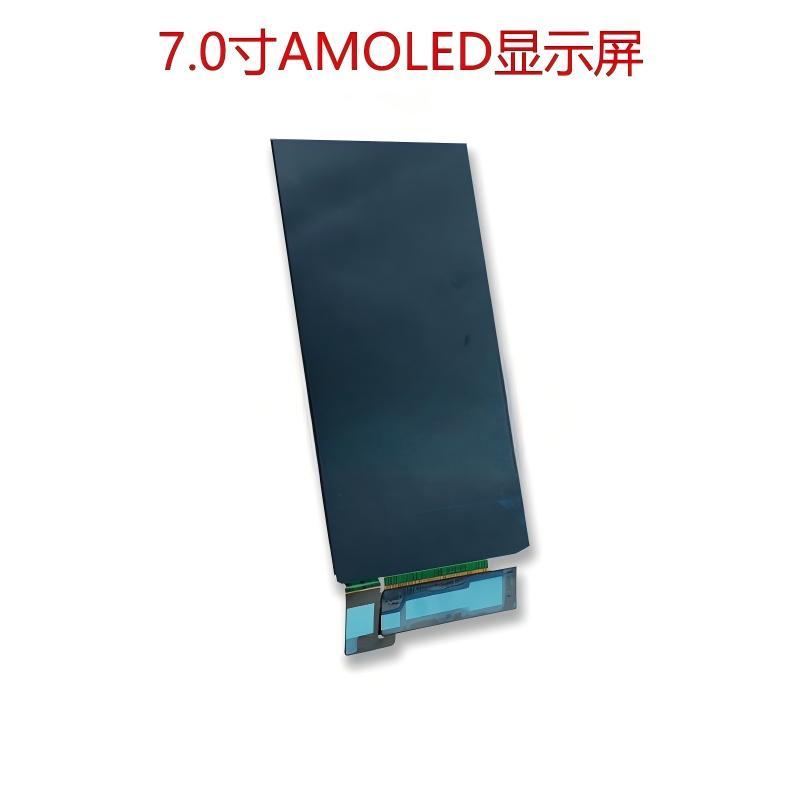

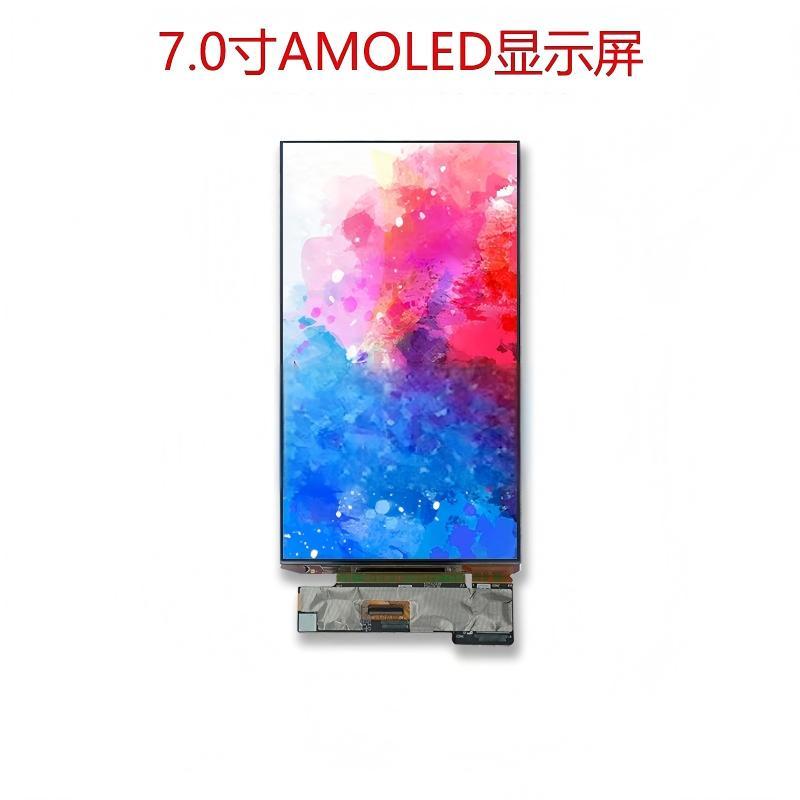

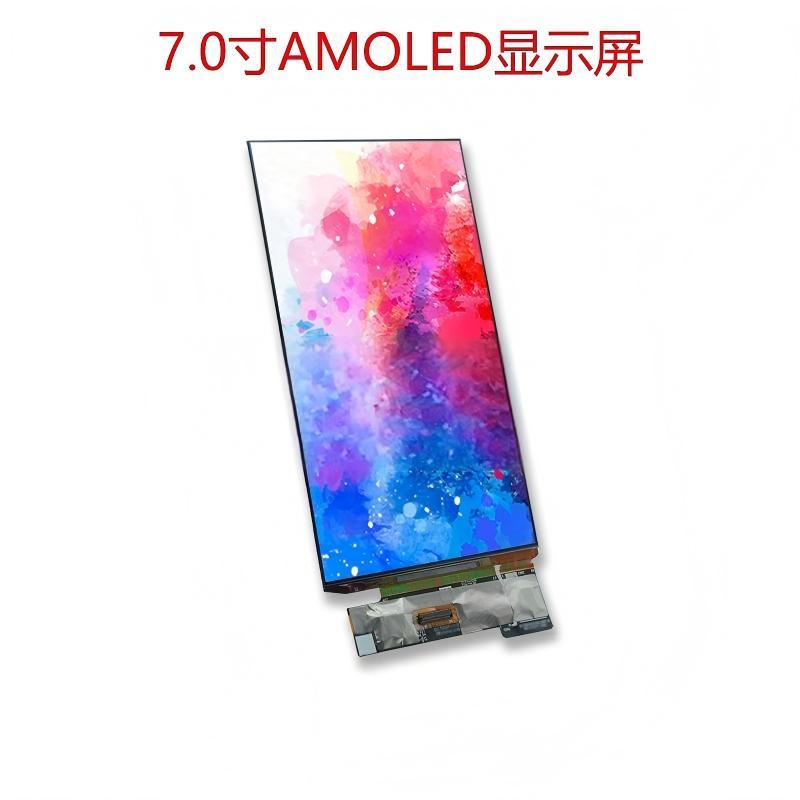

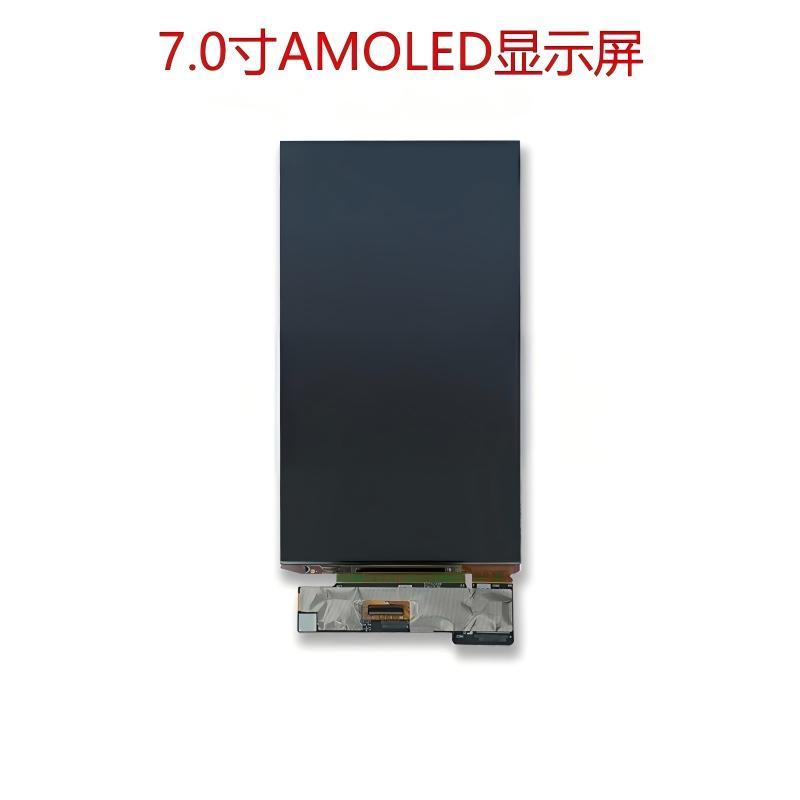

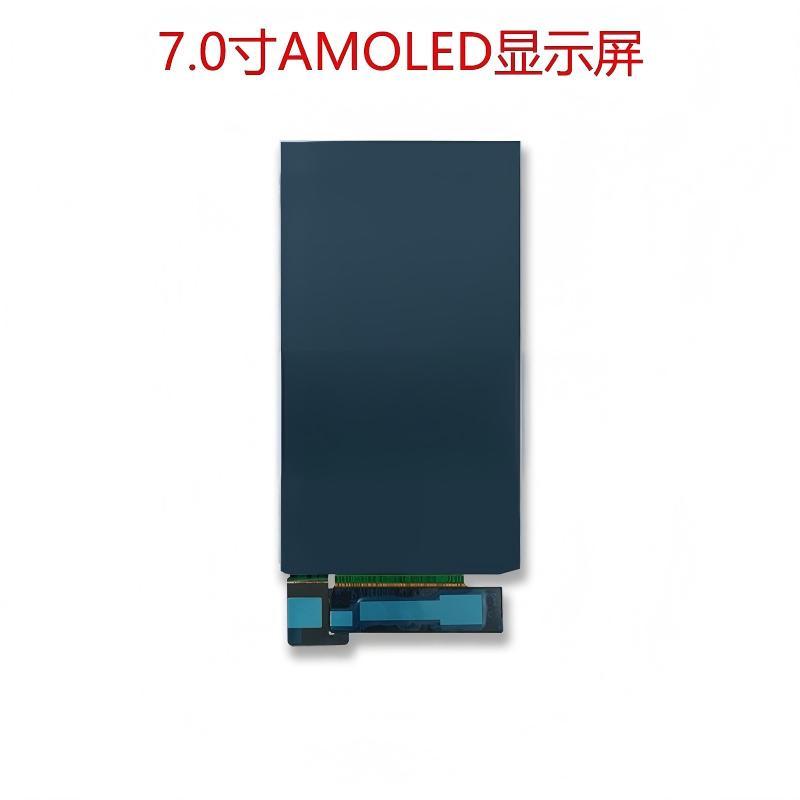

1. Product Name: 7.0-inch 1080x1920 ICNA3512 MIPI interface LTPS AMOLED display with On cell touch
2. Model: ZCD0700005
3. Size: 7.0 inches
4. Does it have touch: Yes
5. Touch type: capacitive touch
6. Display mode: AMOLED
7. Display color: 16.7M
8. Color gamut: 95%
9. Response time:--
10. Resolution: 1080x1920
11. Point distance:--
12. Perspective: Full perspective
13. Driver IC: ICNA3512

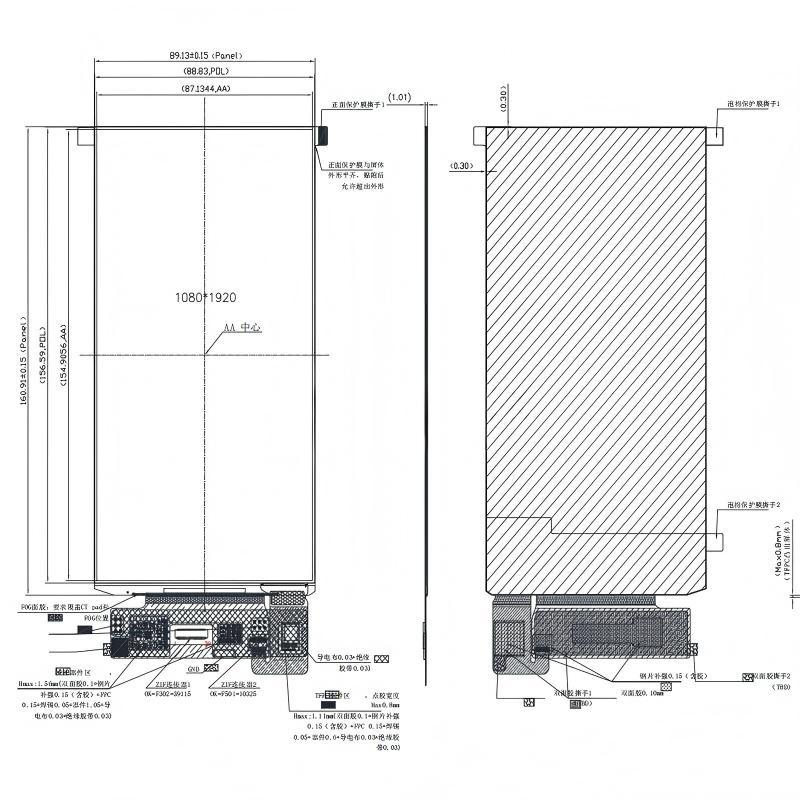

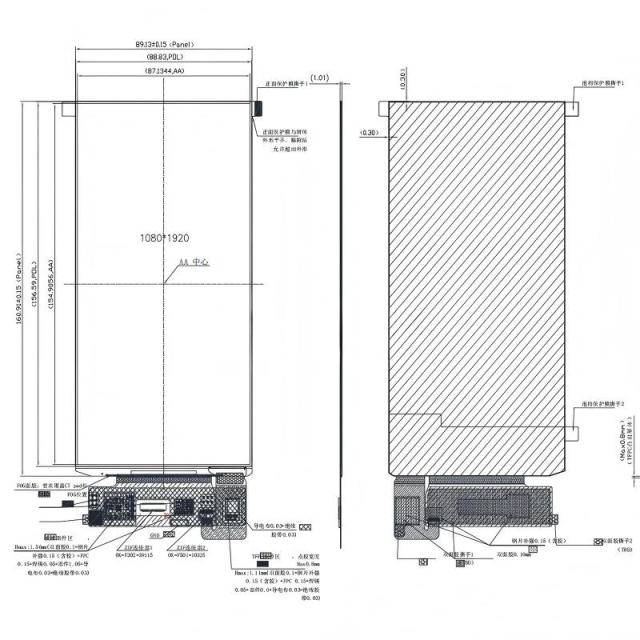

14. Dimensions: 89.13 * 160.91 * 1.01mm
15. Visible area:--
16. Dot matrix area: 87.13 * 154.91mm
17. Brightness: 950cd/m ²
18. Contrast ratio:--
19. Interface type: 4 LANE MIPI
20. Pin count: 39
21. Pin distance:--
22. Touch interface:--
23. Touch IC: FT3519
24. Connection type: plug-in type
25. Working voltage: 1.8V
26. Service life: 30000 hours
27. Working temperature: -20 ℃ to+70 ℃
28. Storage temperature: -40 ℃ to+80 ℃
29. Product certification: RoHS
30. Quality system certification: ISO9001, ISO13485, ISO14001, IATF16949
