Description

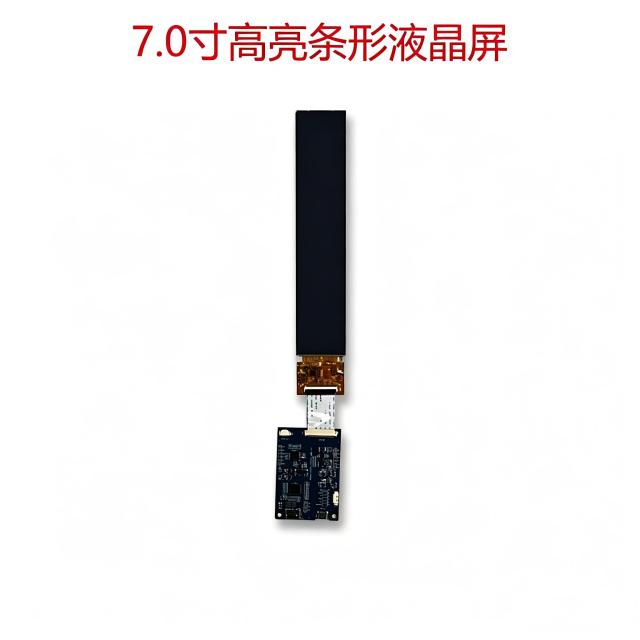

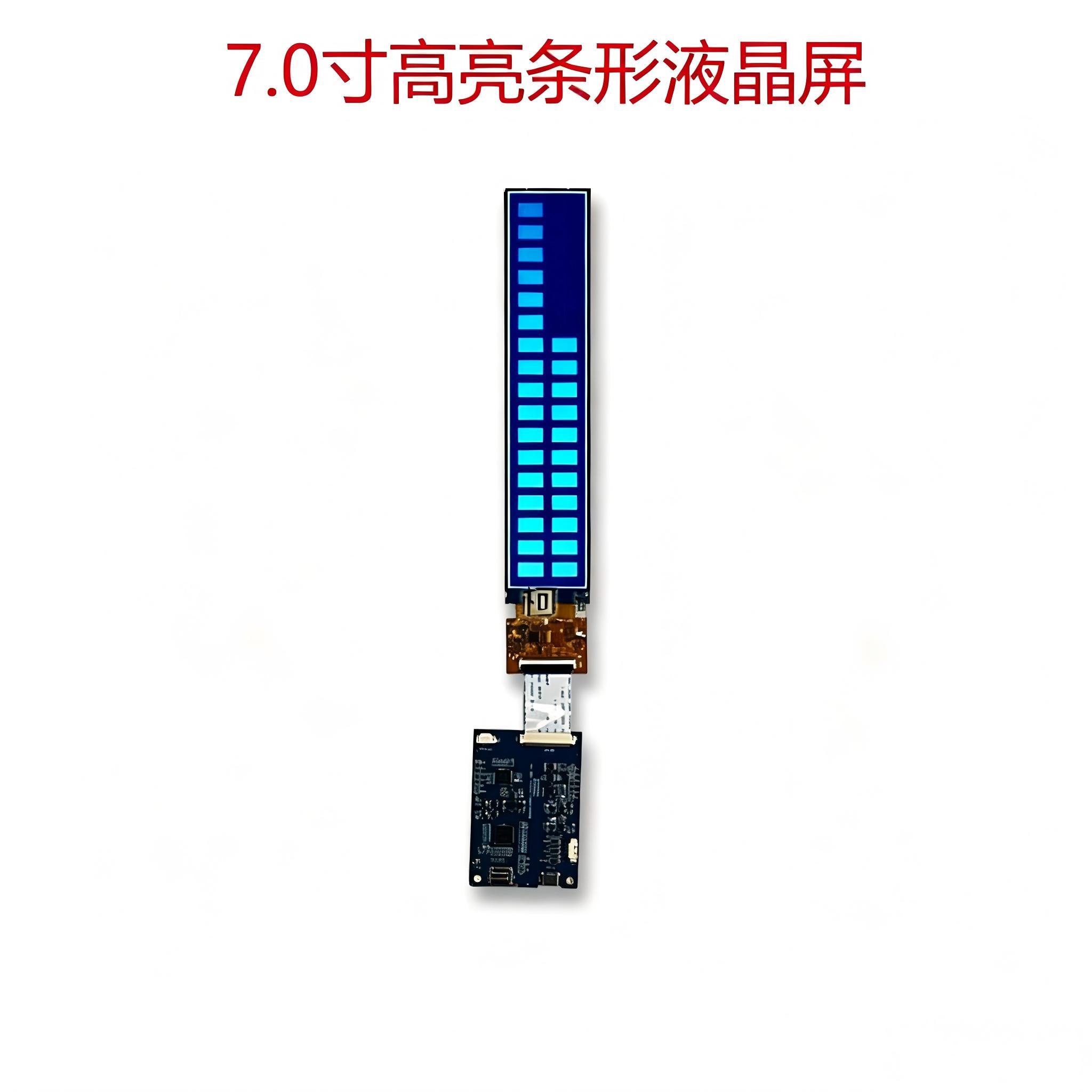

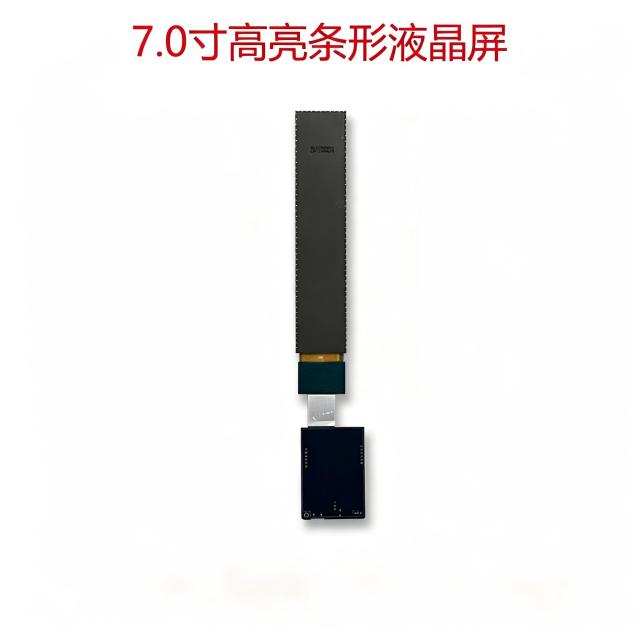

1. Product Name: 7.0-inch 280x1424 Mini HDMI Interface Bar High Brightness Industrial LCD Display Screen
2. Model: ZCD0700004 HDMI
3. Size: 7.0 inches
4. Compatible models:--
5. Does it have touch: No
6. Touch type: None
7. Display mode: IPS
8. Display color: 16.7M
9. Resolution: 280x1424
10. Point spacing: 0.0012 (H) * 0.0012 (V)
11. Perspective: Full perspective
12. Driver IC: OTA7290N
13. Display type: fully transparent, often black

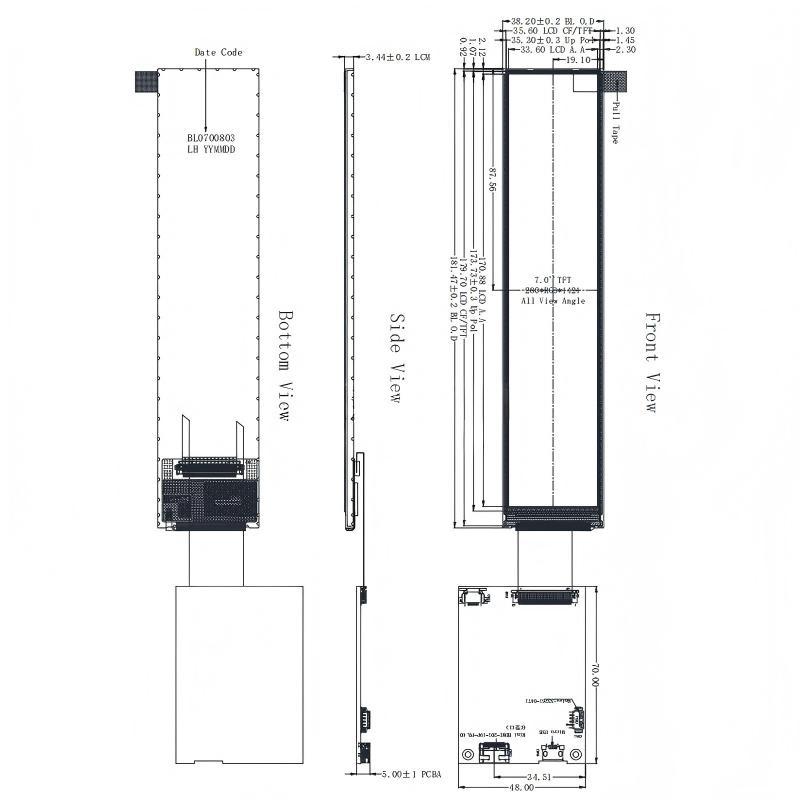

14. Dimensions: 38.20 * 181.47 * 3.44mm
15. Visible area:--
16. Dot matrix area: 33.60 * 170.88mm
17. Brightness: 900cd/m ²
18. Contrast ratio: 1000:1
19. Interface type: Mini HDMI
20. Pin count:--
21. Pin distance:--
22. Connection type: plug-in type
23. Working voltage: 5V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 8 LEDs in series Vf=25.6V, If=40mA
26. Service life: 50000 hours
27. Working temperature: -20 ℃ to+70 ℃
28. Storage temperature: -30 ℃ to+80 ℃
29. Product certification: RoHS
30. Quality system certification: ISO9001, ISO13485, ISO14001, IATF16949
