Description

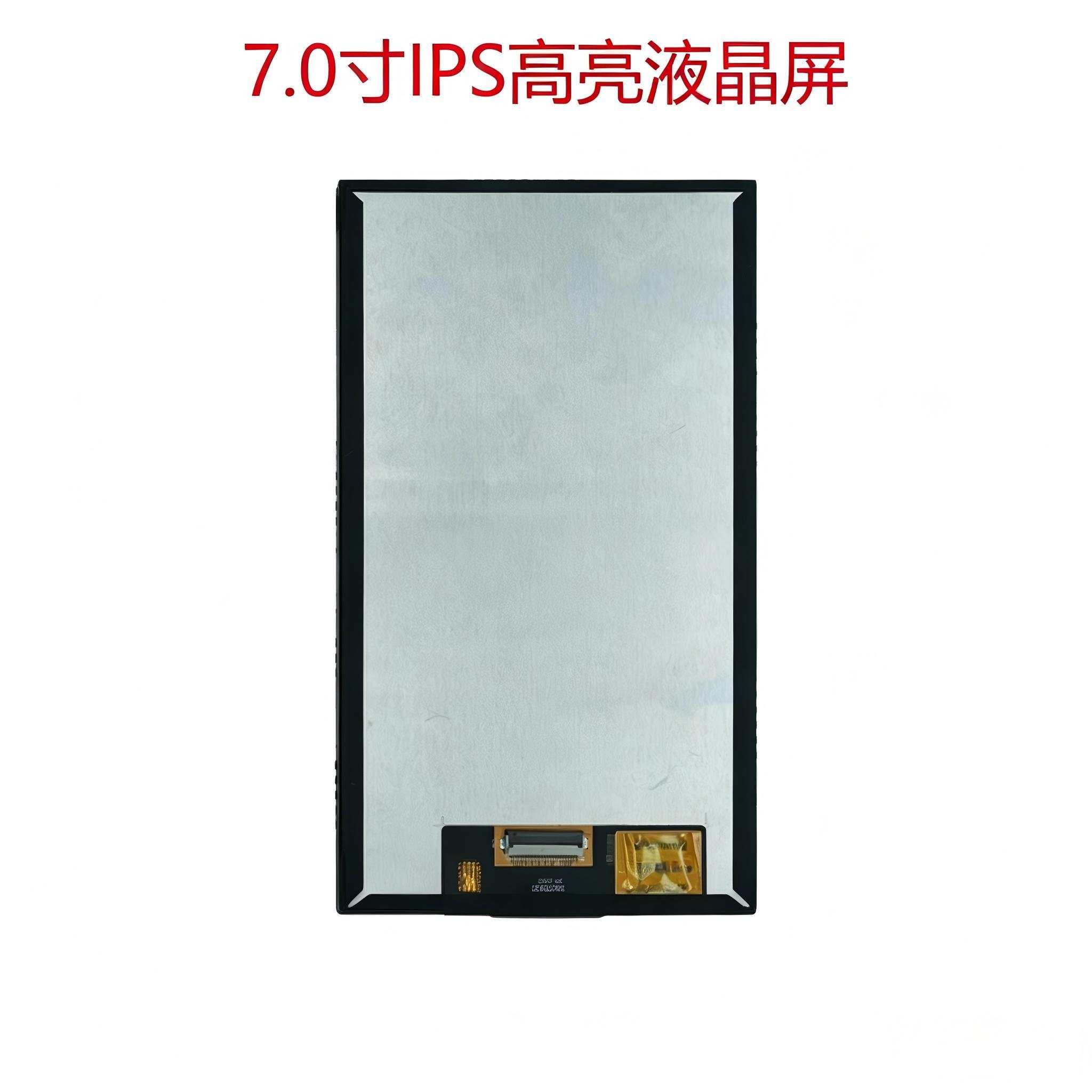

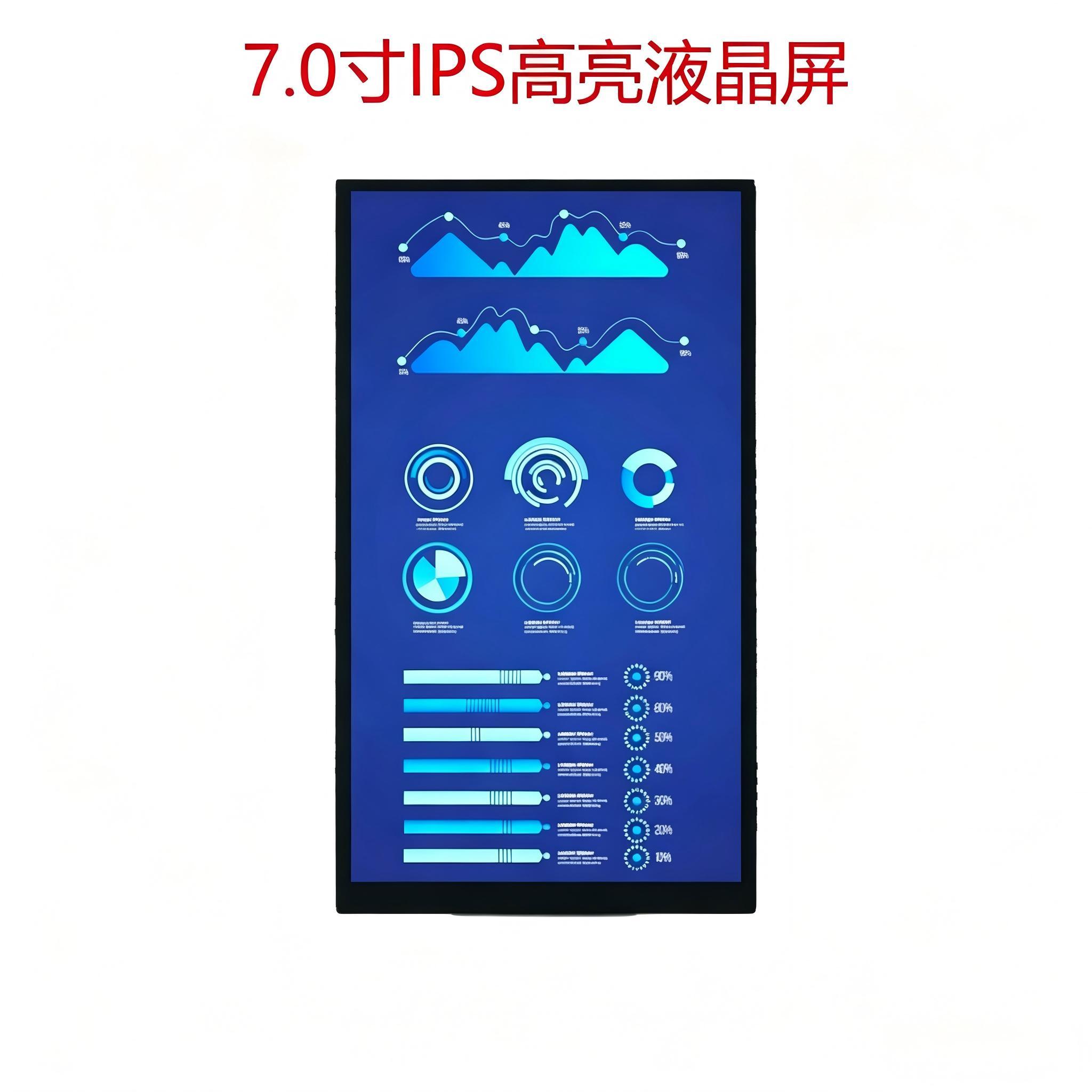

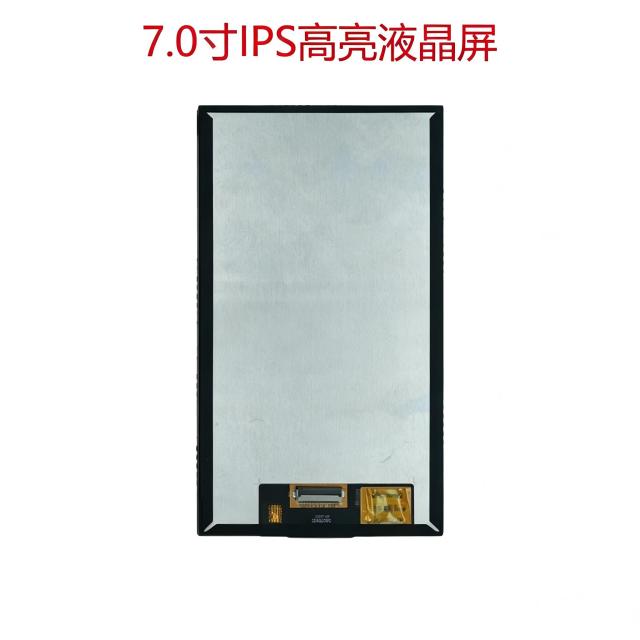

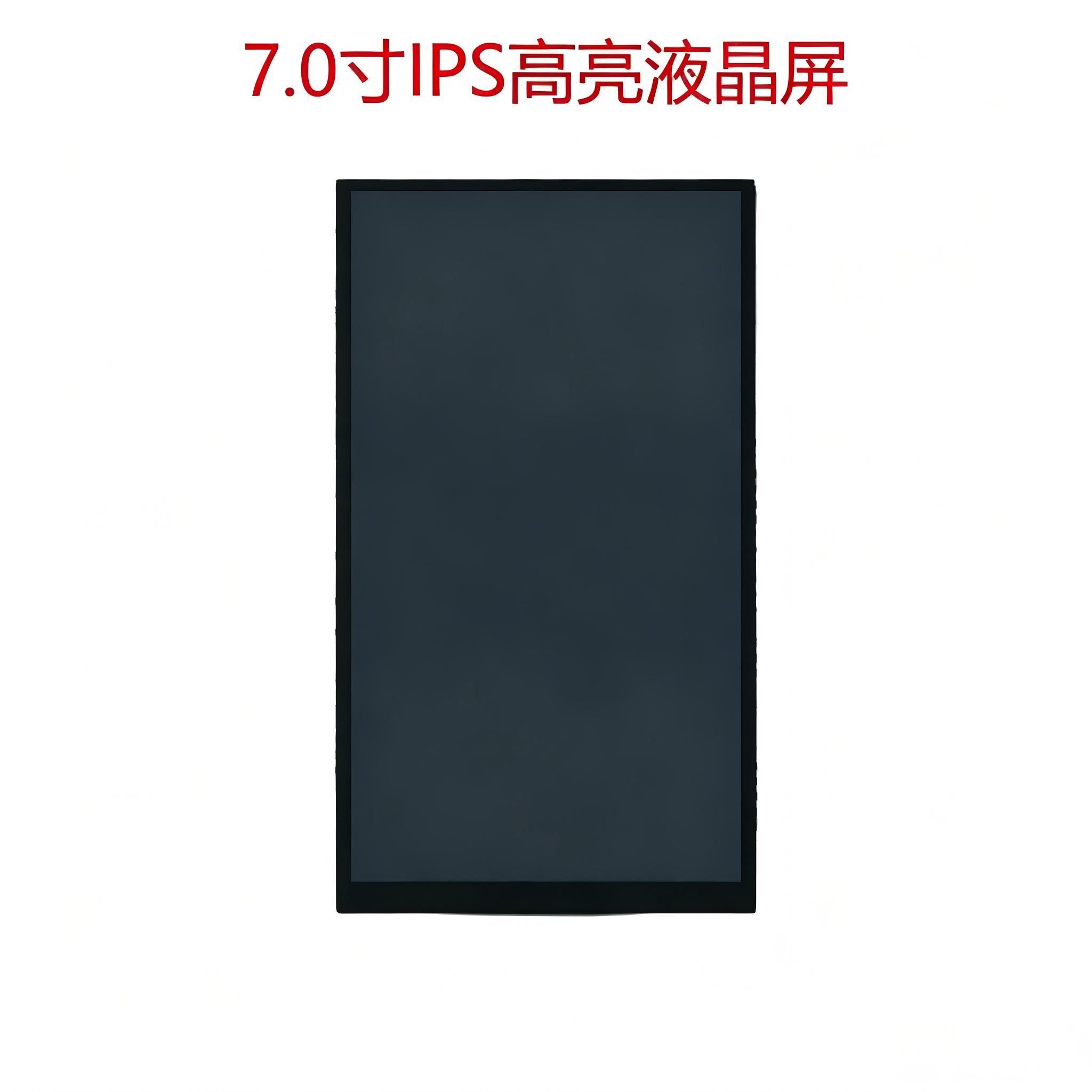

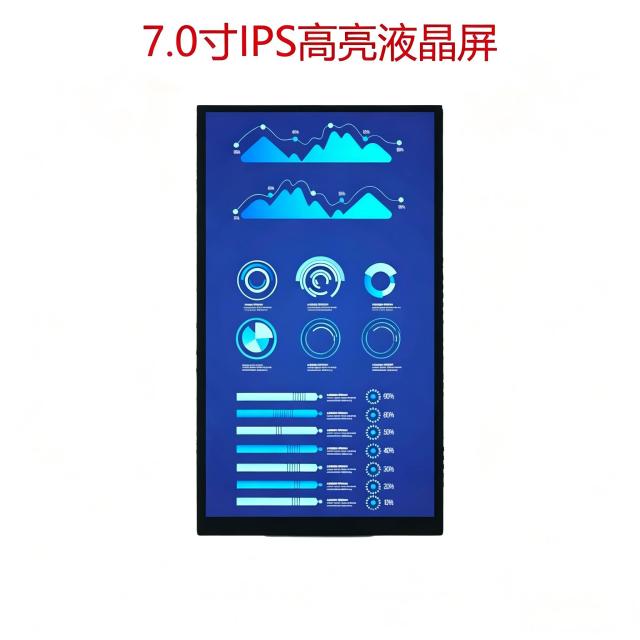

1. Product Name: 7.0-inch 720x1280 Full View MIPI Interface ILI9881C Driver Industrial Control Medical LCD Screen
2. Model: ZCD0700003
3. Size: 7.0 inches
4. Compatible models:--
5. Does it have touch: No
6. Touch type: None
7. Display mode: IPS
8. Display color: 16.7M
9. Resolution: 720x1280
10. Point distance: 0.12075 (H) * 0.12075 (V)
11. Perspective: Full perspective
12. Driver IC: ILI9881C
13. Display type: fully transparent, often black

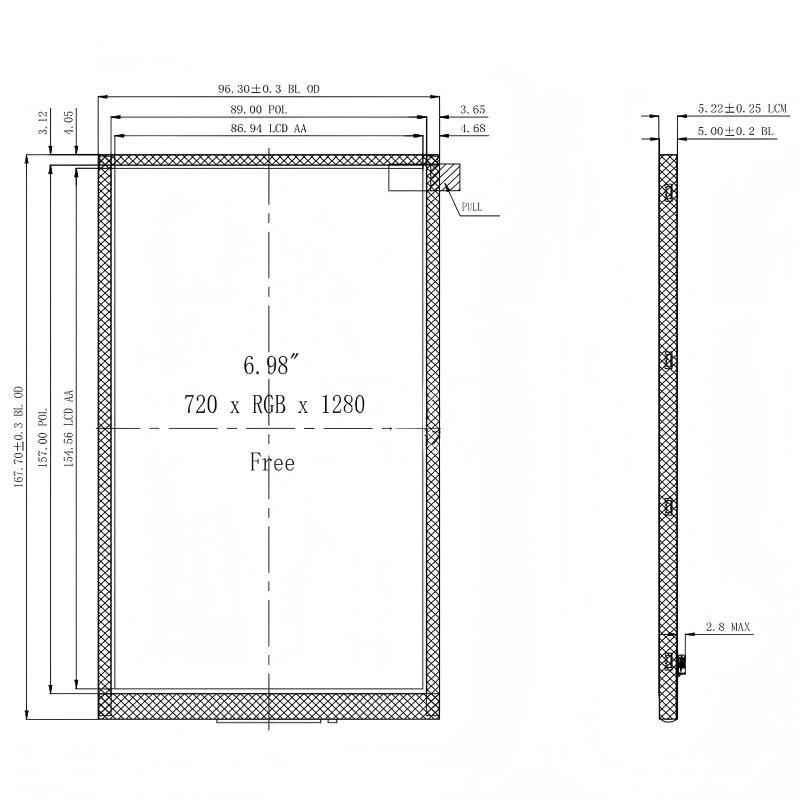

14. Dimensions: 96.30 * 167.70 * 5.22mm
15. Visible area:--
16. Dot matrix area: 86.94 * 154.56mm
17. Brightness: 1200cd/m ²
18. Contrast ratio: 1000:1
19. Interface type: 4-lane MIPI
20. Pin count: 30
21. Pin distance: 0.5mm
22. Connection type: plug-in type
23. Operating voltage: 3.3V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 16 LEDs, 8 strings, 2 parallel VFs=22.81V, IF=120mA
26. Service life: 50000 hours
27. Working temperature: -20 ℃ to+70 ℃
28. Storage temperature: -30 ℃ to+80 ℃
29. Product certification: RoHS
30. Quality system certification: ISO9001, ISO13485, ISO14001, IATF16949
