ZCD0700002

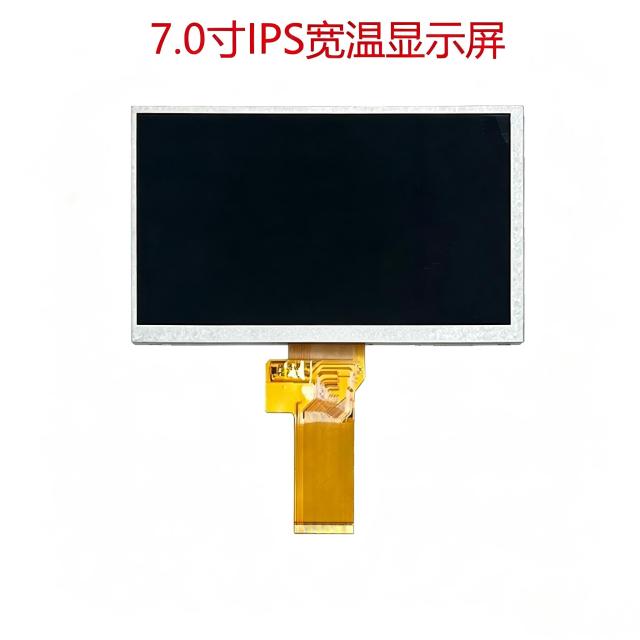

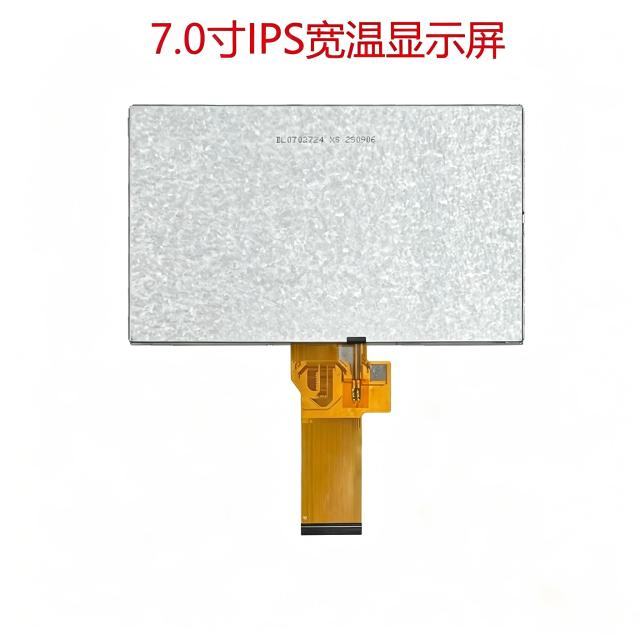

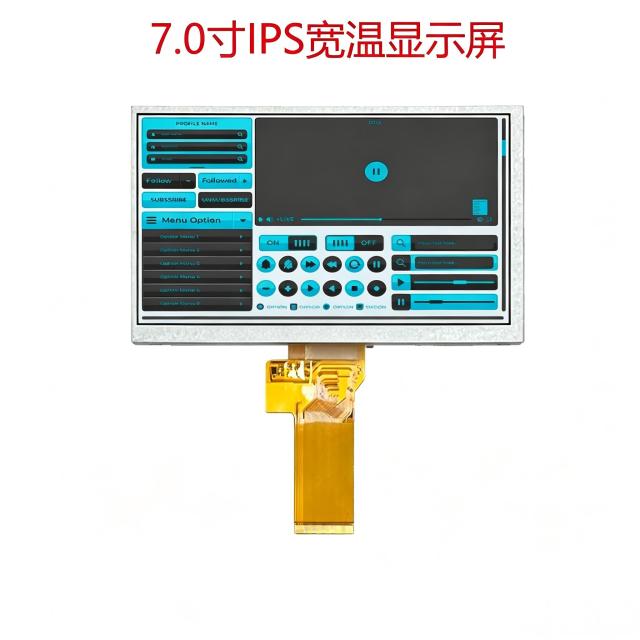

1. Product Name: 7.0-inch High Brightness 800x480 RGB Interface Medical LCD Display Module
2. Model: ZCD0700002
3. Size: 7.0 inches
4. Compatible models:--
5. Does it have touch: No
6. Touch type: None
7. Display mode: TFT
8. Display color: 16.7M
9. Resolution: 800x480
10. Point distance: 0.1923 (H) * 0.1784 (V)
11. Perspective: Full perspective
12. Driver IC: ST7277-G6-K
13. Display type: fully transparent, often black

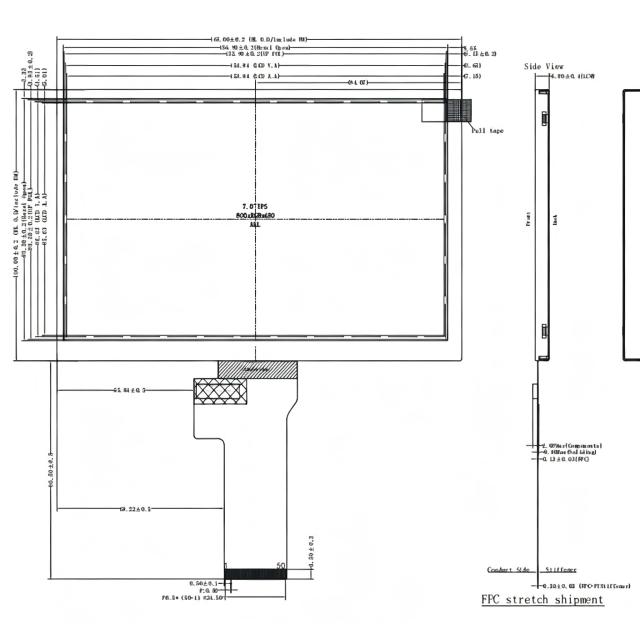

14. Dimensions: 165.00 * 100.00 * 5.80mm
15. Visible area: 154.84 * 86.63mm
16. Dot matrix area: 153.84 * 85.63mm
17. Brightness: 1200cd/m ²
18. Contrast ratio: 1500:1
19. Interface type: 24 bit RGB
20. Pin count: 50
21. Pin distance: 0.5mm
22. Connection type: plug-in type
23. Operating voltage: 3.3V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 27 LEDs 3 strings 9 parallel VF=9.6V, IF=225mA
26. Service life: 50000 hours
27. Working temperature: -30 ℃ to+85 ℃
28. Storage temperature: -40 ℃ to+90 ℃
29. Product certification: RoHS
30. Quality system certification: ISO9001, ISO13485, ISO14001, IATF16949
