Description

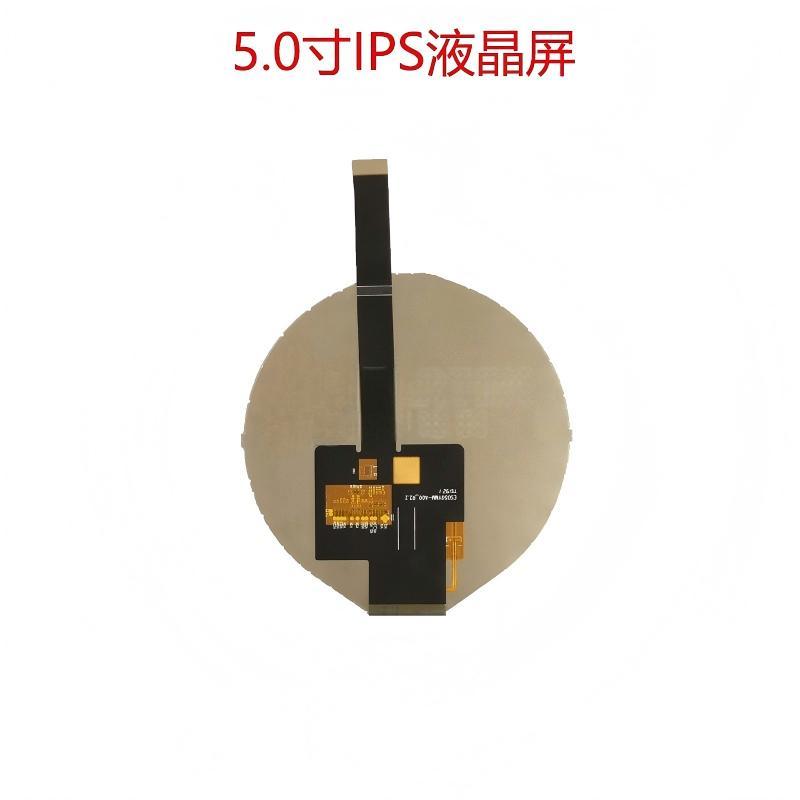

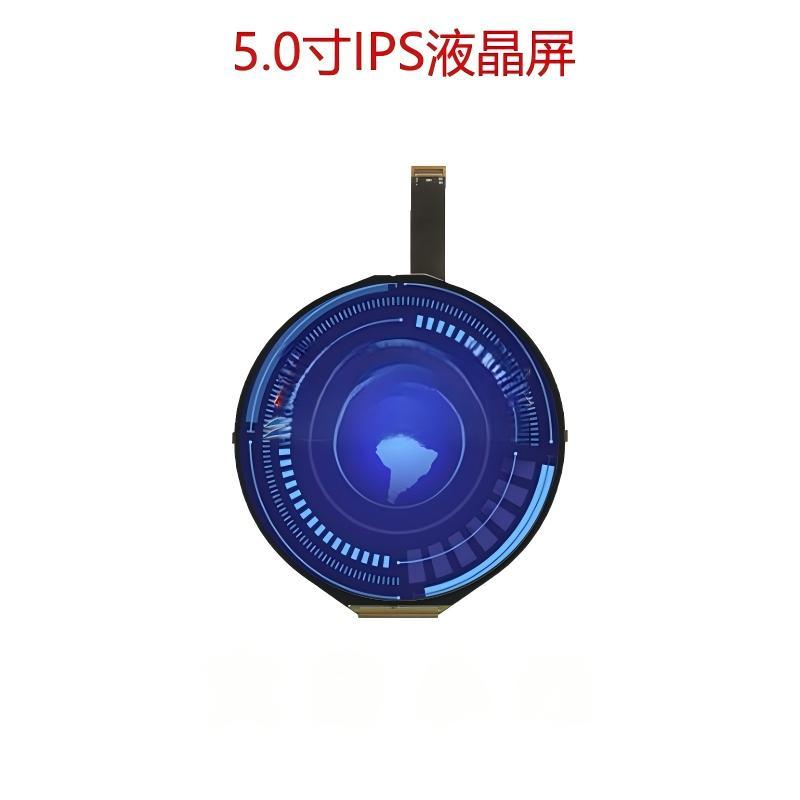

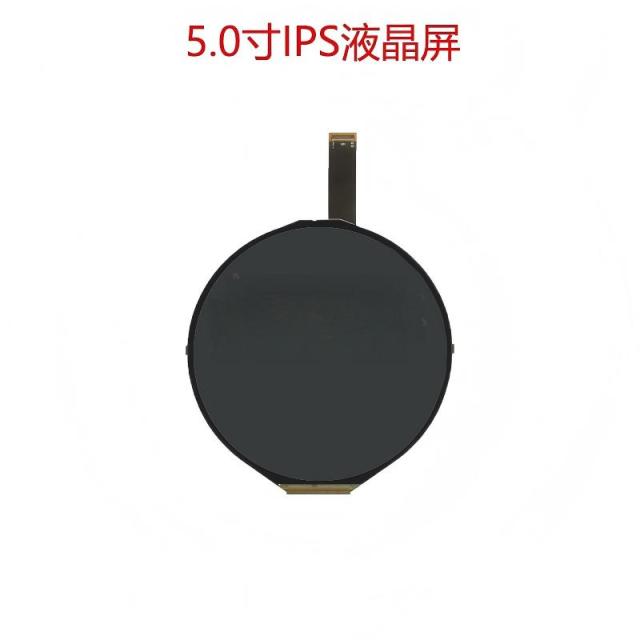

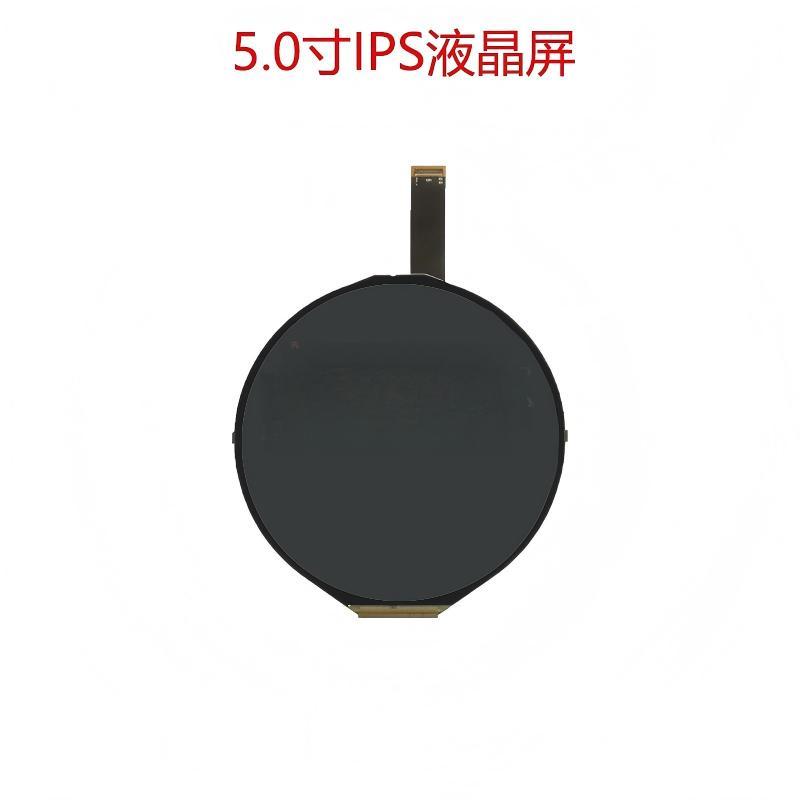

1. Product Name: 5.0-inch 1080x1080 HX8399 1/2/3/4-LANE MIPI Interface Full View IPS Industrial Control LCD Module
2. Model: ZCD0500004
3. Compatible models:
4. Size: 5.0 inches
5. Does it have touch: No
6. Touch type: None
7. Display mode: IPS
8. Display color: 16.7M
9. Resolution: 1080x1080
10. Point distance: 0.1176 (H) * 0.1176 (V)
11. Perspective: Full perspective
12. Driver IC: HX8399
13. Display type: fully transparent, often black

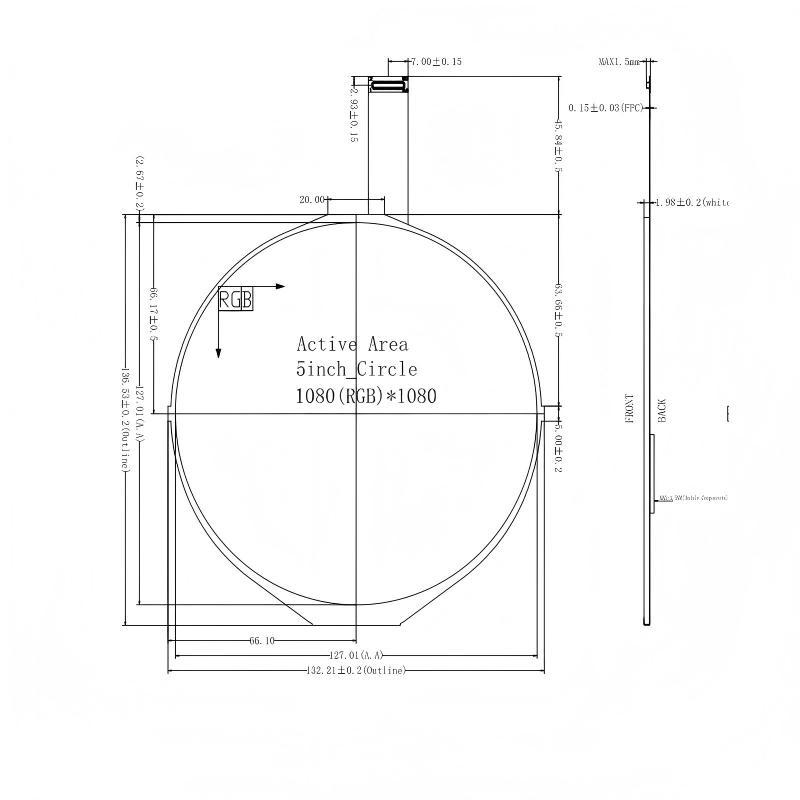

14. Dimensions: 136.53 * 132.21 * 1.98mm
15. Visible area:--
16. Dot matrix area: 127.01 * 127.01mm
17. Brightness: 300cd/m ²
18. Contrast ratio: 1200:1
19. Interface type: 1/2/3/4-LANE MIPI interface
20. Pin count: 49
21. Pin distance: 0.5mm
22. Connection type: plug-in type
23. Working voltage: 1.8V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 6LEDs in series Vled=37.2V, Iled=20mA
26. Service life: 30000 hours
27. Working temperature: -20 ℃ to+60 ℃
28. Storage temperature: -30 ℃ to+75 ℃
29. Quality system certification: ISO9001, ISO13485, ISO14001, IATF16949
30. Product certification: RoHS
