Description

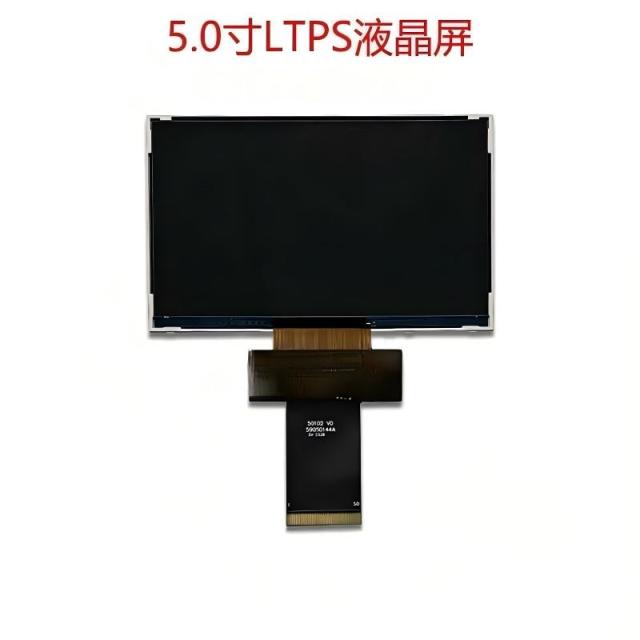

1. Product Name: 5.0-inch 1920x1080 SC5010B LVDS Dual Channel Interface Full View Full HD LTPS Color LCD Display Screen
2. Model: ZCD0500002
3. Size: 5.0 inches
4. Compatible models: None
5. Display mode: LTPS
6. Does it have touch: No
7. Touch type: None
8. Display color: 16.7M
9. Resolution: 1920x1080
10. Point spacing: 0.0576 (H) * 0.0576 (V)
11. Perspective: Full perspective
12. Driver IC: SC5010B
13. Display type: fully transparent, often black
14. Dimensions: 116.59 * 72.76 * 2.77mm
15. Visible area: 111.39 * 63.01mm
16. Dot matrix area: 110.59 * 62.21mm
17. Brightness: 1000cd/m2
18. Contrast ratio: 1000:1
19. Interface type: 1 or 2-port LVDS interface
20. Pin count: 50
21. Pin spacing: 0.5mm
22. Connection type: plug-in type
23. Operating voltage: 3.3V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 16 LEDs, 8 strings, 2 parallel If=40mA, Vf=21.6~26.4V
26. Working temperature: -20 ℃ to+70 ℃
27. Storage temperature: -30 ℃ to+80 ℃
28. Service life: 50000 hours
29. Quality system certification: ISO9001, ISO14001, ISO13485, IATF16949
30. Product certification: RoHS
