Description

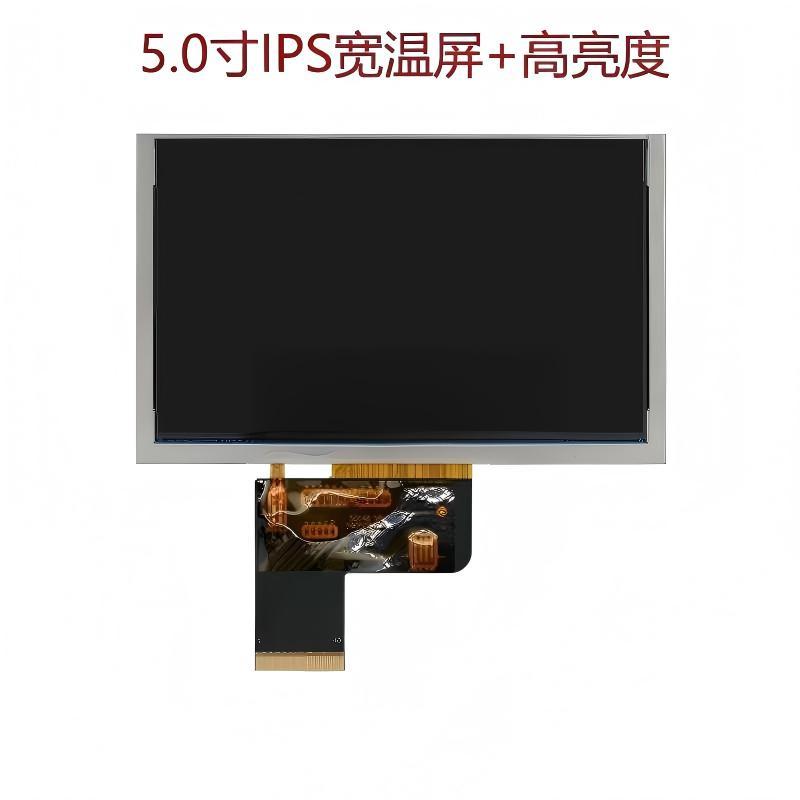

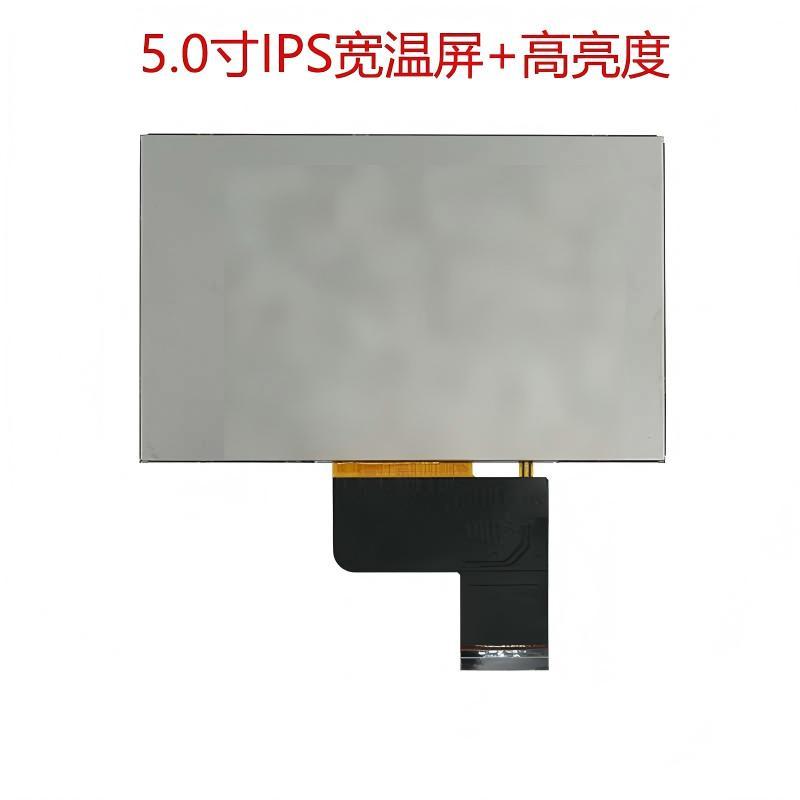

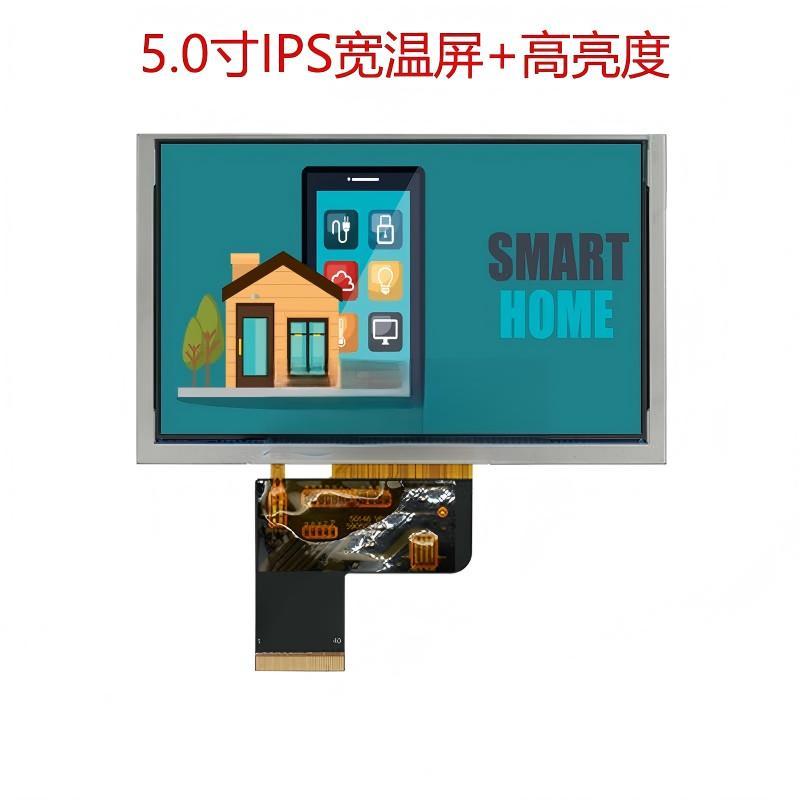

1. Product Name: 5.0-inch 800x480 IPS LCD Screen LVDS Interface ST7265 Driver Full View Wide Temperature High Brightness Touchless Industrial Control Display Screen
2. Model: ZCD0500001
3. Size: 5.0 inches
4. Compatible models:--
5. Does it have touch: No
6. Touch type: None
7. Display mode: IPS
8. Display color: 16.7M
9. Resolution: 800x480
10. Point spacing: 0.135 (H) * 0.135 (V)
11. Perspective: Full perspective
12. Driver IC: ST7265
13. Display type: fully transparent, often black

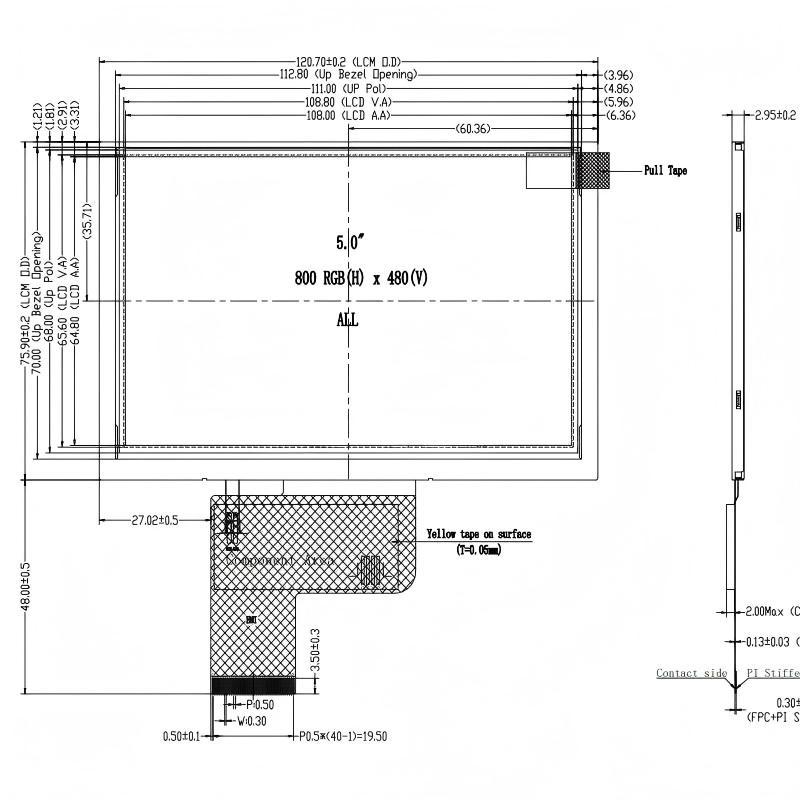

14. Dimensions: 120.70 * 75.90 * 2.95mm
15. Visible area: 108.80 * 65.60mm
16. Dot matrix area: 108.00 * 64.80mm
17. Brightness: 900cd/m ²
18. Contrast ratio: 1200:1
19. Interface type: LVDS
20. Pin count: 40
21. Pin distance: 0.5mm
22. Connection type: plug-in type
23. Operating voltage: 3.3V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 16 LEDs, 8 strings, 2 parallel VF=25.6V, IF=40mA
26. Service life: 50000 hours
27. Working temperature: -25 ℃ to+80 ℃
28. Storage temperature: -30 ℃ to+80 ℃
29. Product certification: RoHS
