Description

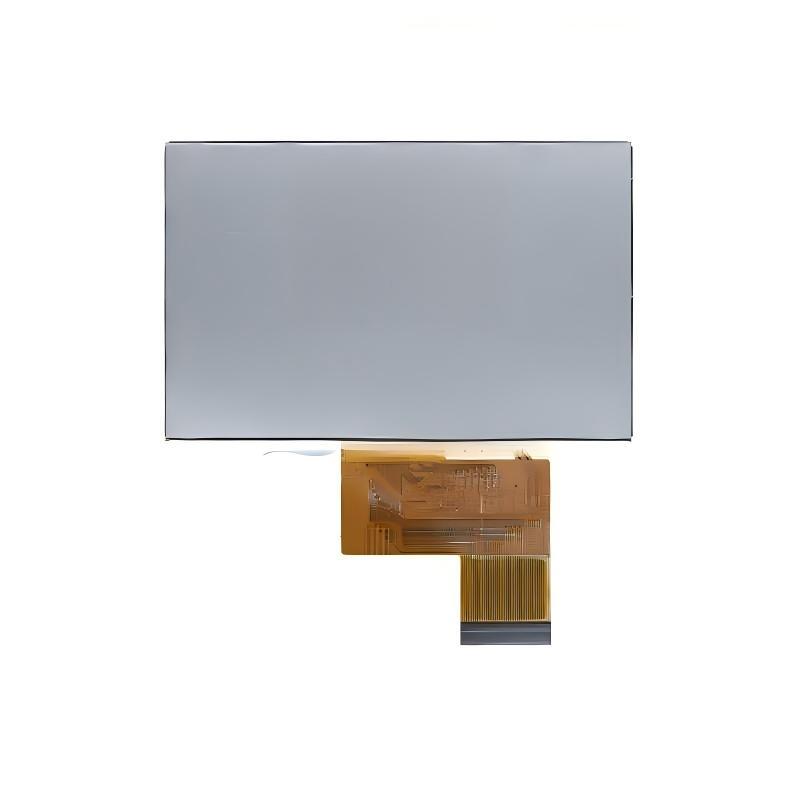

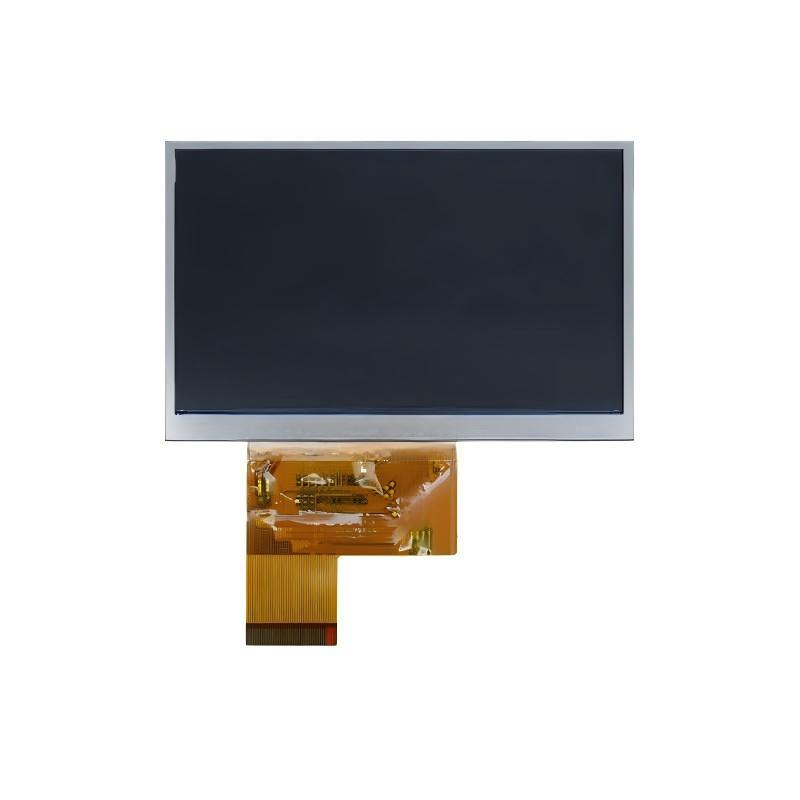

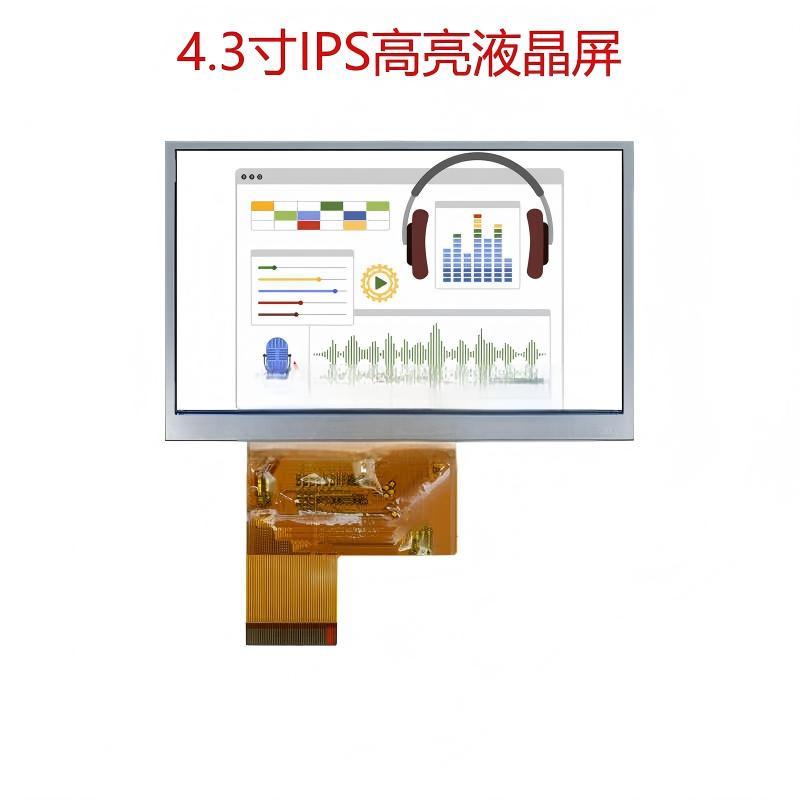

1. Product Name: 4.3-inch landscape 480x272 ST7283 driver RGB interface color wide temperature high brightness LCD screen
2. Model: ZCD0430001
3. Size: 4.3 inches
4. Compatible models:--
5. Does it have touch: No
6. Touch type: None
7. Display mode: IPS
8. Display color: 65K/262K/16.7M
9. Resolution: 480x272
10. Point distance: 0.198 (H) * 0.198 (V)
11. Perspective: Full perspective
12. Driver IC: TBD
13. Display type: fully transparent, often black

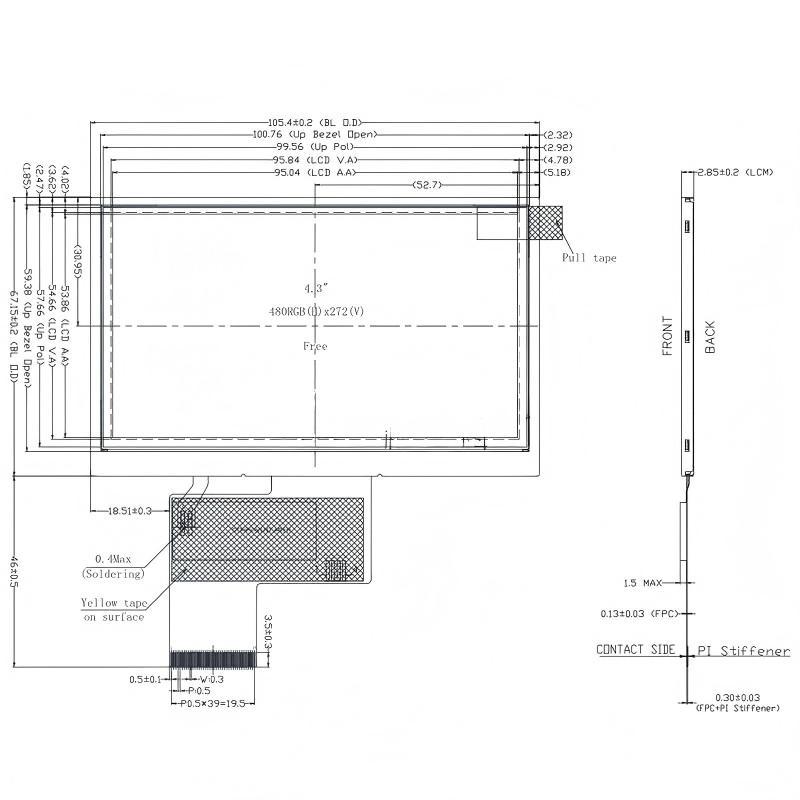

14. Dimensions: 105.40 * 67.15 * 2.85mm
15. Visible area: 95.84 * 54.66mm
16. Dot matrix area: 95.04 * 53.86mm
17. Brightness: 850cd/m ²
18. Contrast ratio: 1200:1
19. Interface type: 24/8-bit RGB
20. Pin count: 40
21. Pin distance: 0.5mm
22. Connection type: plug-in type
23. Operating voltage: 3.3V
24. Backlight color and type: White LED backlight
25. Backlight circuit: 10 LEDs, 5 strings, 2 parallel VFs=16V, IF=40mA
26. Service life: 50000 hours
27. Working temperature: -30 ℃ to+85 ℃
28. Storage temperature: -30 ℃ to+85 ℃
29. Product certification: RoHS
